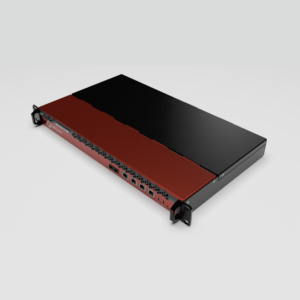

DEC3960 – OPNsense® Rack Security Appliance

DEC3960 / Enterprise Flagship

Upto 35Gbps Throughput / 3 Million packets per second / Dual Power Supply / Dual SFP28 25Gbps

SKU: DEC3960 Category:

€3.148,00

NEW!

DEC3900 Series Enterprise Performance Edition
Shipping starts February 27th

Download Brochure

(File size is approximately 1M)

You may also like...

Description

DEC3920 / DEC3940 / DEC3960

Enterprise Performance Edition

Enterprise Performance Redefined
High-throughput environments & Redundant deployments
DEC3940 & DEC3960 with redundant power supply





Designed from the ground up, and at the heart of the new Enterprise Performance OPNsense® DEC3900 Series security platform is our new Netboard A20 Gen2 Embedded Mainboard. Exceptional in its class, high throughput and energy efficient. With four independent 2.5Gbps Ethernet and two 10Gbps SFP+ ports + optionally dual 25Gbps SFP28 it is ready for performance-driven networks.



19″ 1U RACKMOUNTABLE
With a depth of 259mm excluding mount/handles (just over 10inch) it fits in any cabinet.

Bundled wit a free year OPNsense® Business Edition

A 5-start experience

* Commercial firmware repository
* Official OPNsense Open Virtualization Image
* Free E-Book ( English & German )
* Free E-learning course: Hands-On Labs for Beginners
* Free profession features:
++ Web Application Firewall
++ Proxy Access
++ Extended Blocklist
++ OPNcentral™ – Central Management Solution
++ Integrated GeoIP database



Full specifications & model comparison

Models DEC3920 DEC3940 DEC3960
Software
Preinstalled software OPNsense® OPNsense® OPNsense®
License Open Source + 1 year free Business
Edition		 Open Source + 1 year free Business
Edition		 Open Source + 1 year free Business
Edition
Hardware Specifications
SFP+ Ports [10Gbps] / SFP28 Ports [25Gbps] 2 / 0 2 / 0 2 / 2
2.5GbE Ports [100/1000/2500Mbps] 4 4 4
USB-C 1 1 1
Console Port 1 1 1
Internal Storage 256GB M.2. Solid State Flash 512GB M.2. Solid State Flash 512GB M.2. Solid State Flash
Memory 16GB DDR5 32GB DDR5 32GB DDR5
CPU Cores 8 8 8
Virtual Interfaces (802.1q VLANS) 4093 4093 4093
System Performance
Firewall Throughput 36.8Gbps 36.8Gpbs 36.8Gpbs
Firewall Packets Per Second 3.07 Million pps 3.07 Million pps 3.07 Million pps
Firewall Port to Port Throughput 9Gbps 9Gpbs 22Gpbs
Concurrent Sessions 15 Million 31 Million 31 Million
Firewall Latency (average) 67µs 67µs 67µs
Firewall Policies (Recommended Maximum) 10000 10000 10000
IPsec VPN Throughput (single/multiple tunnels) 5.4Gbps / 12.5Gbps 5.4Gbps / 12.5Gbps 5.4Gbps / 12.5Gbps
IPsec VPN Packet Per Second (single/multiple tunnels) 527 Kpps / 1190Kpps 527 Kpps / 1190Kpps 527 Kpps / 1190Kpps
OpenVPN DCO Throughput 2.81Gbps 2.81Gbps 2.81Gbps
OpenVPN DCO Packets Per Second 272Kpps 272Kpps 272Kpps
Wireguard Throughput 4.23Gbps 4.23Gbps 4.23Gbps
Wireguard Packets Per Second 410Kpps 410Kpps 410Kpps
Threat Protection Throughput Packet Per Second 700Kpps 700Kpps 700Kpps
Threat Protection Throughput 7.93Gpbs 7.93Gbps 7.93Gbps
High Availability with State Synchronisation Requires Two Requires Two Requires Two
Dimensions
Height x Width x Depth (mm) 43.65 (1U) x 482.6 (19″) x 287 (259 excl. panel) 43.65 (1U) x 482.6 (19″) x 287 (259 excl. panel) 43.65 (1U) x 482.6 (19″) x 287 (259 excl. panel)
Height x Width x Length (inches) 1.73 x 19 x 11.1 (10.2 excl. panel) 1.73 x 19 x 11.1 (10.2 excl. panel) 1.73 x 19 x 11.1 (10.2 excl. panel)
Form Factor 19″ Rackmountable 19″ Rackmountable 19″ Rackmountable
Weight (appliance only) 2.97Kg 3.18 Kg 3.29 Kg
Environment
Power Requirements 100-240VAC, 50-60Hz 100-240VAC, 50-60Hz 100-240VAC, 50-60Hz
Maximum Current 1.52A 1.52A 1.52A
Power Consumption (Typical) 28W 30W 36W
Heat Dissipation 95.5 BTU/hr 102.4 BTU/hr 122.8 BTU/hr
Operating Temperature 0 to +45°C 0 to +45°C 0 to +45°C
Storage Temperature -20 to +70°C -20 to +70°C -20 to +70°C
Humidity 10-90% non-condensing 10-90% non-condensing 10-90% non-condensing
Regulatory Compliance
FCC part 15 Class A, CE, Rohs, REACH FCC part 15 Class A, CE, Rohs, REACH FCC part 15 Class A, CE, Rohs, REACH



All measurements are based upon TCP traffic unless stated otherwise. Total Firewall Throughput is calculated based on maximum PPS and standard 1500 byte packets. Maximum PPS is measured using 500 byte packets. IPS performance is measured using 25K ET Open malware rules and standard 1500 byte package size. (SSL) VPN is measured using AES256GCM16. Concurrent sessions are based upon memory available, where one state consumes 1KB of memory and 1GB of memory is reserved for system tasks. Latency is measured as an average over 60 seconds.

Supported SFP(+) Modules

When using SFP+Modules, do not mix 2.5/5Gbps and 10Gbps link-speed as the hardware does not support mixing these due to different frequencies.

While most standard LC-LC OM3 SFP+ modules and SFP+ Direct Attached Cables are likely to function we advise to select one of of the known compliant modules, see https://docs.opnsense.org/hardware/sfp_compatibility.html
